B-RAX™ 3000 Series Three Channel Gauge Controller
Overview
The B-RAX 3000 series are InstruTech’s generation of three channel vacuum gauge controllers capable of operating one ionization gauge (IG) and two convection enhanced pirani gauges (CG). Standard features include three analog outputs, six setpoint relays, remote Digital I/O, RS232 and RS485 serial communications.
B-RAX 3500 is capable of operating one InstruTech CC606 or CC605 cold cathode inverted magnetron ionization gauge and two InstruTech CVG101 convection vacuum gauge sensors, providing pressure measurement range from 7.50E-11 to 1,000 Torr.
B-RAX 3400 is capable of operating one InstruTech BA601 nude UHV EB-degas Bayard-Alpert hot cathode ionization or one InstruTech’s BA600 hot cathode Mini ionization gauge and two InstruTech CVG101 convection vacuum gauge sensors, providing pressure measurement range from 2.00E-11 to 1,000 Torr.
B-RAX 3300 is capable of operating one InstruTech BA602 nude or one BA603 glass enclosed hot cathode I2R ionization gauge and two InstruTech CVG101 convection vacuum gauges, providing pressure measurement range from 4.00E-10 to 1,000 Torr.
B-RAX 3200 is capable of operating one InstruTech IGM400 hot cathode cathode ionization gauge module and two InstruTech CVG101 convection vacuum gauge sensors, providing pressure measurement range from 1.00E-09 to 1,000 Torr.
Features

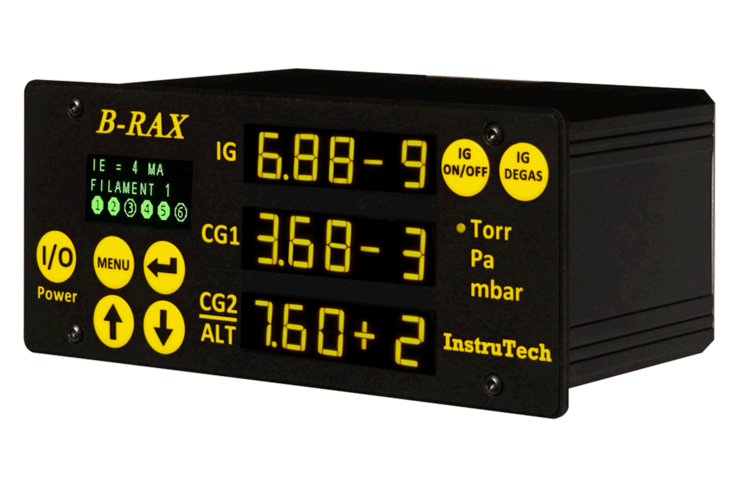

- Bright 3-channel pressure measurement LED display plus an OLED setup and programming screen
- User programmable display units in Torr, mbar or Pa
- Operates one ionization gauge and up to two InstruTech CVG101 convection gauges or one convection and one alternate device such as a capacitance diaphragm gauge. Also capable of operating up to two of your existing Granville-Phillips® Convectron® vacuum gauge sensors.
- 3 analog outputs , 6 setpoint relays
- Remote Digital I/O, RS232 and RS485 serial comm.
- CE and RoHS compliant
- Outstanding warranty of 5 years
FAQ's
What type of vacuum gauge sensors can the B-RAX 3400 operate?
The B-RAX 3400 is capable of operating one InstruTech BA601 UHV nude EB-degas hot cathode ionization gauge and two InstruTech CVG101 Worker Bee convection vacuum gauge sensors or one convection and one alternate device such as a capacitance diaphragm gauge.
What type of vacuum gauge sensors can the B-RAX 3300 operate?
The B-RAX 3300 is capable of operating one InstruTech BA602 nude or one BA603 glass enclosed hot cathode I2R ionization gauge and two InstruTech CVG101 Worker Bee convection vacuum gauge sensors or one convection and one alternate device such as a capacitance diaphragm gauge.
What type of vacuum gauge sensors can the B-RAX 3200 operate?
B-RAX 3200 can operate one InstruTech IGM400 hot cathode or one CCM500 cold cathode ionization vacuum gauge module. The B-RAX is also capable of operating up to two CVG101 worker bee convection vacuum gauges or one convection and one alternate device such as a capacitance diaphragm gauge.
What is the measurement range of the B-RAX 3400?
- 2.00E-11 to 1,000 Torr
- 2.70E-11 to 1,333 mbar
- 2.7E-09 Pa to 133 kPa
What is the measurement range of the B-RAX 3300?
- 4.00E-10 to 1.00E-03 Torr
- 5.30E-10 to 1.30E-03 mbar
- 5.30E-08 to 1.30E-01 Pa
What is the measurement range of the B-RAX 3200?
When used with the IGM400 hot cathode gauge:
- 1.00E-09 to 1,000 Torr
- 1.30E-09 to 1,333 mbar
- 1.30E-07 Pa to 133 kPa
When used with the CCM500 cold Cathode gauge:
- 1.00E-08 to 1,000 Torr
- 1.30E-08 to 1,333 mbar
- 1.30E-06 Pa to 133 kPa
Is the B-RAX rack-mountable?
Yes. The B-RAX is a half rack design. Optional mounting hardware is provided that can be used to install one or two B-RAX controllers side by side in a 19 inch wide rack.
How do I connect the B-RAX to the vacuum gauge sensors?
You need to acquire the cable assemblies offered by InstruTech.
What gauge cable lengths are available?
The standard cable lengths are 10 ft, 25 ft and 50 ft. InstruTech can provide longer cable assemblies if needed.
What is the power requirement of the B-RAX?
B-RAX 3400/3300: 20 to 28 Vdc, 200 W.
B-RAX 3200: 20 to 28 Vdc, 36 W.
What are the available output signals from the B-RAX?
6 setpoint relays, 3 analog outputs, Digital I/O, RS232 and RS485 serial communications.
Can the 3 analog outputs be assigned to any one of the gauges?
Yes. The analog outputs can be assigned to any one of the three gauges or a combination of the ion gauge and one of the convection gauges for wide range measurements.
Can the 6 setpoint relays be assigned to any one of the gauges?
Yes. They can be assigned to any of the gauges as programmed by the user.
What is Digital I/O used for?
IG filament on/off, degas on/off and emission current selection can be set remotely via signals from a PLC by applying momentary continuity to ground.
Trademark Acknowledgements listed in the B-RAX Data sheet.
