CC605/CC606 Cold Cathode

CC605_CC606

Overview

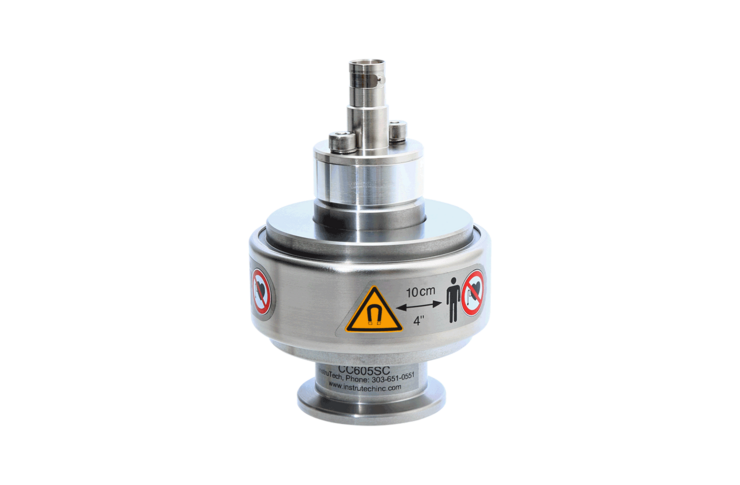

CC600 series are InstruTech’s cold cathode inverted magnetron vacuum gauge sensors with no onboard controller. The InstruTech B-RAX™ 3500 controller is required to operate this gauge.

CC605 is offered with NW25KF, NW40KF and 2 3/4 in. Conflat fitting. The UHV model CC606 is offered with NW40KF and 2 3/4 in. Conflat.

Features

  • CC605: Measurement range of 1.5E-9 to 3.75E-3 Torr
  • CC606: UHV Measurement range of 7.5E-11 to 3.75E-3 Torr
  • Cleanable sensor
  • Corrosion resistant ceramic feed through
  • CE and RoHS compliant
  • Standard warranty of 2 years

Downloads

CC600 Cold Cathode Series Data Sheet
pdf 265 KB
CC600 Cold Cathode Series User Manual
pdf 832 KB
Compatible Controller

B-RAX 3500 is capable of operating one InstruTech CC605 or CC606.

B-RAX™ 3000 Series Three Channel Gauge Controller
