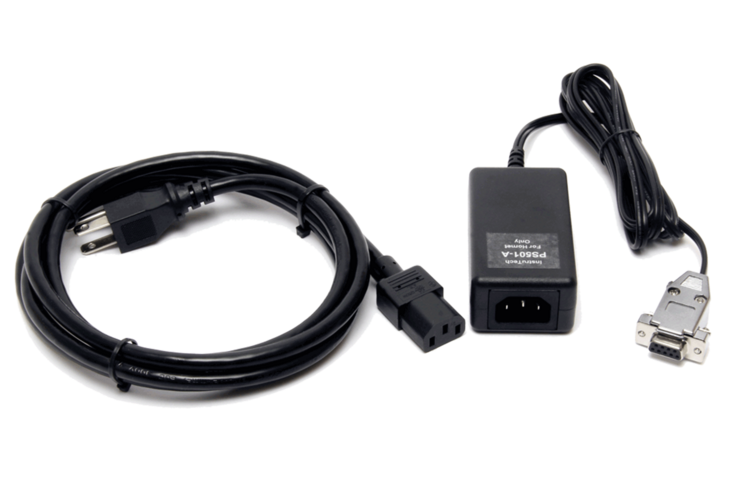

PS501 Power Supply

Compatibility: Powers the IGM402, IGM401, CCM502, WGM701

Power Input: 100 – 240 Vac

Power Plug: North American 115 Vac plug

Output: 24 Vdc @ 2.5 A (60 W)

Compliance: CE, RoHS, UL (US/Canada), CCC (China)

Connector: 9-pin D-sub female to mate with and power the modules

Cable length: 6 ft. (2 m)

9-pin D-sub connector backshell can be opened to enable connections to signals.

Part Numbers

PS501-A (Power cord with North American 115 Vac plug included with the power supply)

PS501-X (No power cord included with the power supply)
Note – The conventional IEC60320 AC receptacle allows use with any user supplied AC mains power cord set available worldwide.

Downloads

PS501 Power Supply Data Sheet

pdf 231 KB
